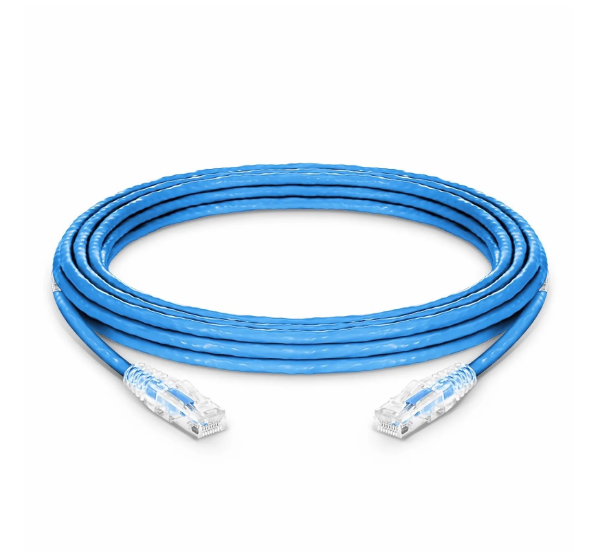

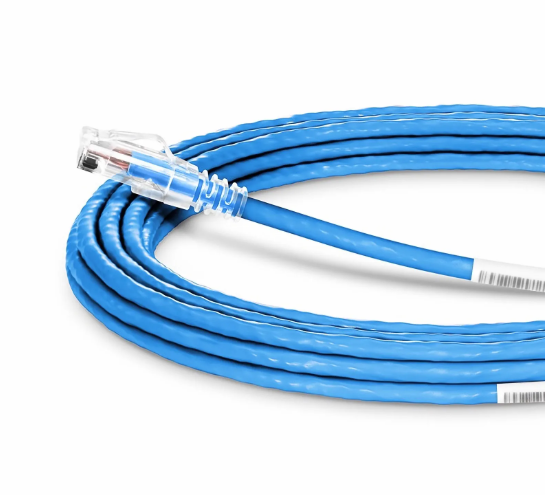

Cat6a 23AWG Snagless Unshielded (U/UTP) PVC CMP 35ft (10.7m) Ethernet Network Patch Cable, Blue
Cat6a network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 750MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories. The skywardcable cat6a patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation.
● Product origin: China
● Delivery time: 7 -10 workdays
We are manufacturer that could support you good quality with aggressive price. Believe that we are the best choice for you from many traders and resellers.
Accepted OEM/ ODM
Welcome to send us any of your questions and inquiries, we are more than pleasure to send you more information.
The sheath material is new environmentally friendly material PVC CMP, which is durable, flame-retardant, resistant to bending. Stranded copper patch cable can be used with a longer flex-life. Tested and verified to meet Cat6a component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles. Cat6a cable uses eight-core four-pair precision twisted pairing technology and passes the Fluke test, which ensures that it can provide stable high-speed network connection and ensure the accuracy and reliability of data transmission.
| Cable Type | Cat6a Snagless | Shielding Type | Unshielded (UTP) |
| Cable jacket | PVC CMP | Length | 35ft (10.7m) (including Plugs) |
| Data Rate Support | 10GBase-T | Conductor Type | Solid |
| Conductor Material | >99.95% Oxygen-free copper | Maximum (Tested) Frequency | 750MHz |
| Gauge (AWG) | 23 | Cable Outer Diameter(mm) | 6.2 ± 0.3 |
| Termination End | Rj45 Plug | Twisted Pairs | 4 Pairs |
| Wire Scheme | T568B, Straight | Standard | ISO/IEC 11801,ANSI/TIA-568.2-D |
| Operating Temperature | -20 to 75°C (-4 to 167°F) | Installation Temperature | -10 to 50°C (-14 to 122°F) |
