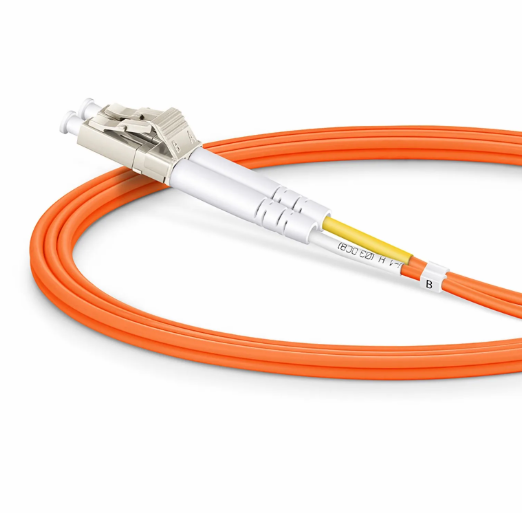

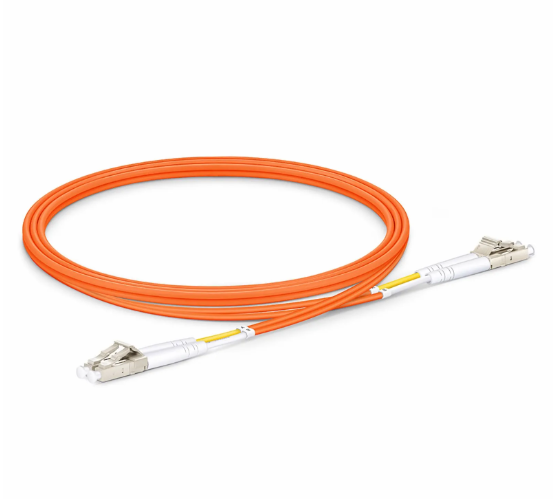

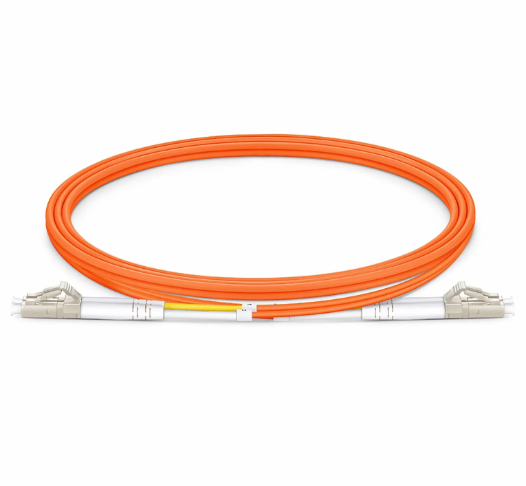

1m (3ft) Fiber Patch Cable, 2 Fibers, G.651, LC UPC Duplex to LC UPC Duplex, Multimode (OM1), Riser (OFNR), 2.0mm, Tight-Buffered, Orange
● Product origin: China
● Delivery time: 7 -10 workdays
We are manufacturer that could support you good quality with aggressive price. Believe that we are the best choice for you from many traders and resellers.
Accepted OEM/ ODM
Welcome to send us any of your questions and inquiries, we are more than pleasure to send you more information.
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OM1 fiber patch cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.
| Connector A | LC UPC Duplex | Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.651 |
| Fiber Mode | OM1 62.5/125μm | Wavelength | 850/1300nm |
| Flame Rating | Riser (OFNP) | Cable Outside Diameter (OD) | 2.0mm |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Min.Bend Radius (Optical Fiber) | 15mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 90/150N (Long/Short Term) |
| Attenuation at 1310nm | 1.5dB/km | Attenuation at 1550nm | 3.5dB/km |
| Operating Temperature | -10 t0 70°C(14 to 158°F) | Storage Temperature | -20 to 70°C(-4 to 158°F) |
